產品中心

高速智能安全穩定

工業CPU卡

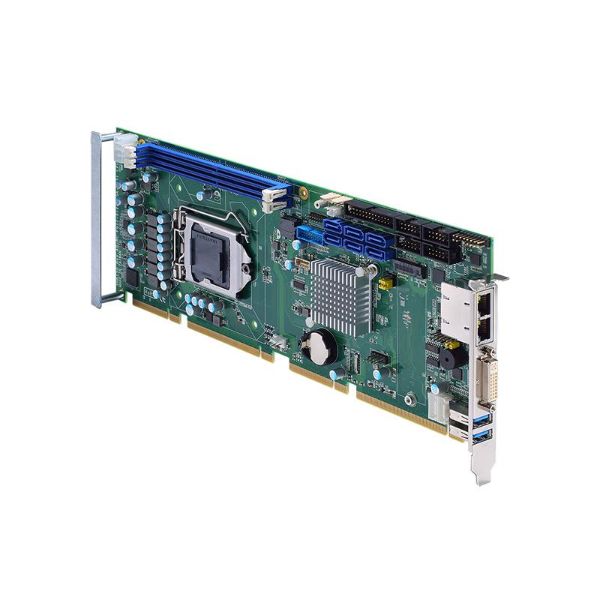

TOP-AXH310-K42

● LGA1151第8代Intel®Core?i7 / i5 / i3，Xeon®E（C246），Pentium®或Celeron®處理器（最高95W）
● 英特爾®C246 / Q370 / H310芯片組
● 雙通道DDR4-2666 / 2400 Long-DIMM，最大支持32GB
● 支持Intel®AMT和vPro（C246 / Q370）
● 支持TPM 2.0（可選）
● 支持M.2 Key M（C246 / Q370）

產品描述技術參數應用方案相關產品

CPU	LGA1151 9th/8th gen Intel® Core? i7/i5/i3, Xeon® E
CPU	(C246), Pentium® or Celeron® processor (最大支持95W)
系統內存	C246: 2 x 288-pin 2666/2400 with ECC un-buffered SO-DIMM
	(Intel® Core? i7/i5 僅支持 non-ECC), 最大支持64GB
	Q370/H310: 2 x 288-pin 2666/2400 un-buffered SO-DIMM,
	最大支持64GB
芯片組	Intel® C246/Q370 (Intel® vPro supported) Intel® H310
BIOS	AMI UEFI BIOS
SSD	M.2 Key M 2280, PCIe x4 signal (C246, Q370)
看門狗定時器	1~255 秒可編程設置
擴展接口	1 x PCIe x16 Gen3
	1 x PCIe x4 or 4 x PCIe x1 Gen3
	4 x 32-bit PCI bus masters
鋰電池	3V/220 mAH
電源要求	Intel® Core? i7-9700TE with 32GB DDR4-2666 x 2
電源要求	+12V @ 2.8A, +5V @ 2.4A, +3.3V @ 1.3A
尺寸	338 x 126 mm
板厚	1.6 mm
工作溫度	0°C to +60°C (+32°F to +140°F)
相對濕度	10% to 95% 相對濕度, 無冷凝
SATA	C246/Q370: 6 x SATA-600, support RAID 0/1/5/10
SATA	H310: 4 x SATA-600
硬件監控	檢測 CPU/系統溫度、電壓和風扇轉速
以太網	1 x 10/100/1000 Mbps 以太網 Intel® i219-LM;
	支持 Wake-on-LAN, RPL/PXE Boot ROM, AMT
	1 x 10/100/1000 Mbps 以太網 Intel® i211-AT;
	支持 Wake-on-LAN, RPL/PXE Boot ROM
音頻	高清音頻解碼 MIC-in/Line-in/Line-out/Speaker-out
音頻	音頻 AX93242 (可選)
USB	C246/Q370: 2 x USB 3.1 Gen2, 4 x USB 3.1 Gen1 & 6 x USB 2.0
	(2 ports onboard, 4 ports on SHB connector-C golden fingers)
	H310: 4 x USB 3.1 Gen1 & & 6 x USB 2.0 (2 ports onboard,
	4 ports on SHB connector-C golden fingers)
串口	2 x RS-232
串口	2 x RS-232/422/485, mode selection by SW
PS/2 Combo 接口	1 x PS/2 keyboard internal connector
PS/2 Combo 接口	1 x PS/2 mouse internal connector
TPM	TPM 2.0 module (可選)
其他	1 x LPT
	1 x 智能CPU風扇
	1 x 智能系統風扇
圖形控制器	Intel® HD Graphic
顯存容量	共享系統內存
顯示接口	1 x DVI-I
顯示接口	1 x DisplayPort++ (internal header)

Ordering Information
Standard
SHB150RDGG-Q370 (P/N: E38C150106)	PICMG 1.3 full-size CPU card with LGA1151 socket, Intel®
SHB150RDGG-Q370 (P/N: E38C150106)	Q370, DVI-I, 2 GbE LAN, and PCIe x4 BIOS
SHB150RDGG-Q370 (P/N: E38C150107)	PICMG 1.3 full-size CPU card with LGA1151 socket, Intel®
SHB150RDGG-Q370 (P/N: E38C150107)	Q370, DVI-I, 2 GbE LAN, and PCIe x1 BIOS
SHB150RDGG-H310 (P/N: E38C150108)	PICMG 1.3 full-size CPU card with LGA1151 socket, Intel®
SHB150RDGG-H310 (P/N: E38C150108)	H310, DVI-I, 2 GbE LAN, and PCIe x4 BIOS
SHB150RDGG-H310 (P/N: E38C150109)	PICMG 1.3 full-size CPU card with LGA1151 socket, Intel®
SHB150RDGG-H310 (P/N: E38C150109)	H310, DVI-I, 2 GbE LAN, and PCIe x1 BIOS
SHB150RDGG-C246 (P/N: E38C150110)	PICMG 1.3 full-size CPU card with LGA1151 socket, Intel®
SHB150RDGG-C246 (P/N: E38C150110)	C246, DVI-I, 2 GbE LAN, and PCIe x4 BIOS
SHB150RDGG-C246 (P/N: E38C150111)	PICMG 1.3 full-size CPU card with LGA1151 socket, Intel®
SHB150RDGG-C246 (P/N: E38C150111)	C246, DVI-I, 2 GbE LAN, and PCIe x1 BIOS
Optional
5938A808010E	2 x USB 2.0 cable with bracket, P=2.54 mm, L=190 mm
5948C122800E	2 x USB 3.1 (Gen1) cable with bracket, L=400 mm
59401502800E	2 x USB 3.1 (Gen2) cable with bracket, L=400 mm
59380000290E	PS/2 keyboard & mouse cable with bracket
593826A0000E	SATA signal cable/red, L=500mm
E393242100	AX93242-RC HD audio converter kit
59380402010E	1 x COM port cable with bracket, P=2.54 mm, L=300 mm
59380703000E	2 x COM port cable with bracket, P=2.54 mm, L=300 mm
594826A0010E	DVI-I to DVI-D+VGA Y cable
83935151000E	TPM 2.0 module (AX93515)
83987091000E	DisplayPort++ kit with bracket

Processor List
CPU	Speed	Cache	Cores	TDP
Intel® Core? i9-9900K Processor	3.6 GHz	16 MB	8	95 W
Intel® Core? i7-9700TE Processor	1.8 GHz	12 MB	8	35 W
Intel® Core? i7-8700K Processor	3.7 GHz	12 MB	6	95 W
Intel® Core? i7-8700 Processor	3.2 GHz	12 MB	6	65 W
Intel® Core? i7-8700T Processor	2.4 GHz	12 MB	6	65 W
Intel® Core? i5-9500E Processor	3.0 GHz	9 MB	6	65 W
Intel® Core? i5-9500TE Processor	2.2 GHz	9 MB	6	35 W
Intel® Core? i5-9400 Processor	2.9 GHz	9 MB	6	65 W
Intel® Core? i5-8400 Processor	2.8 GHz	9 MB	6	65 W
Intel® Core? i5-8500T Processor	2.1 GHz	9 MB	6	35 W
Intel® Core? i3-9100 Processor	3.6 GHz	6 MB	4	65 W
Intel® Core? i3-9100E Processor	3.1 GHz	6 MB	4	65 W
Intel® Core? i3-9100TE Processor	2.2 GHz	6 MB	4	35 W
Intel® Core? i3-8100 Processor	3.6 GHz	6 MB	4	65 W
Intel® Core? i3-8100T Processor	3.1 GHz	6 MB	4	35 W
Intel® Xeon® E-2176G Processor	3.7 GHz	12 MB	6	80 W
Intel® Xeon® E-2278GE Processor	3.3 GHz	16 MB	8	80 W
Intel® Pentium® Gold G5400T Processor	3.1 GHz	4 MB	2	35 W
Intel® Celeron® G4900T Processor	2.9 GHz	2 MB	2	35 W
